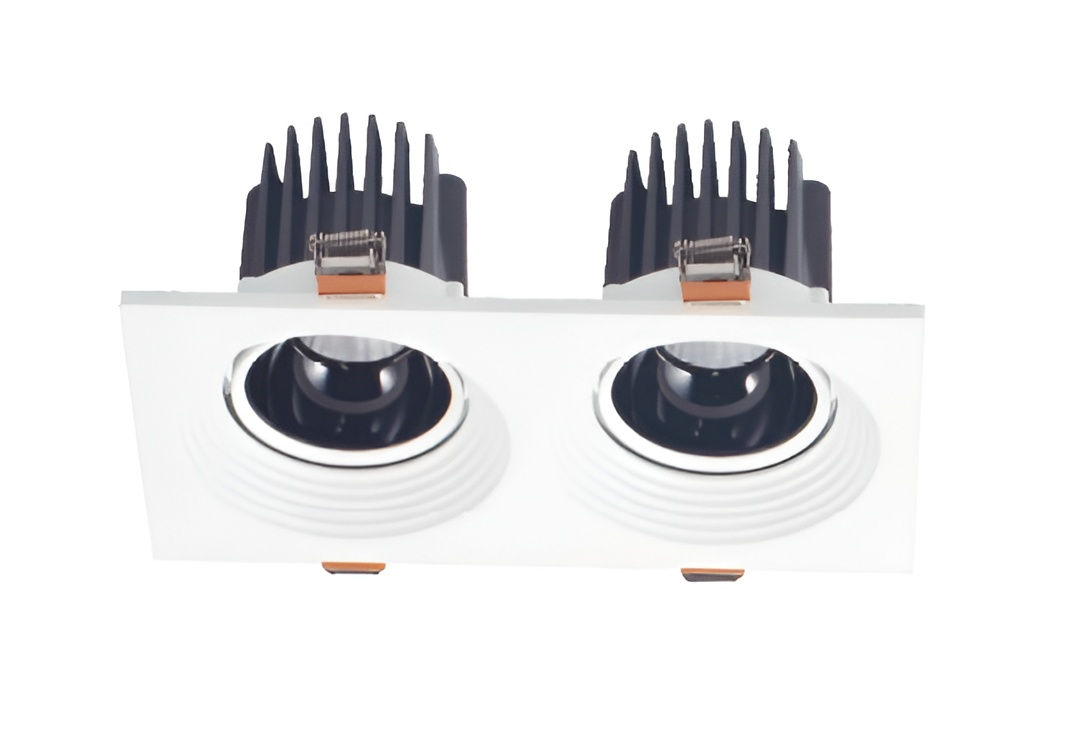

i8 Kent Series | Multi-Headed Recessed Light
i8 Kent Series | Multi-Headed Recessed Light
The Kent Series is a precision-engineered recessed luminaire offering versatile directional lighting with exceptional control. Configured as a single, dual, or triple-head module, it provides tailored accent coverage for any space. It features a high-performance COB light source with excellent color rendering and efficiency, housed in a die-cast aluminum body for optimal heat dissipation. With fully rotational 360° adjustment and a selection of beam angles from a focused 15° to a broader 50°, it provides precise optical placement and flexibility. Its deep-recessed anti-glare design (UGR<19) ensures comfortable illumination, while multiple reflector color options and a stable constant-current driver allow for seamless integration and reliable performance. Ideal for retail spaces, hotels, museums, galleries, and premium residences, the Kent Series delivers focused, high-quality light where accuracy, adaptability, and visual comfort are essential.
Optical & Light Quality
Premium Light Quality:
CRI (Color Rendering): CRI 90 – Excellent color rendering for true-to-life, vibrant, and accurate color representation
Beam Angle (depending on variant): 15° | 30° | 45° | 50°
Standard Fixed CCT: 3000K | 4000K | 5000K
Color: White Exterior with White / Black / Silver Internal Reflector or Black Exterior with Black Internal Reflector
Full Tunable White: Optional continuous adjustment from 3000K to 5000K, controllable via DALI or BLE Mesh for dynamic lighting scenes.
Electrical & Control Specifications
Driver Performance:
Input Voltage: AC 220-240V
Frequency: 50-60 Hz
- Dimming & Control: Compatible with 0-10V and DALI protocols for smooth dimming and integration into building management systems.
Durability & Environmental Ratings
Ingress Protection (IP): IP20
Warranty
2 years, covering repair or replacement for manufacturing defects. Labor costs for replacement are excluded.
Technical Specifications
Core Specifications & Variants
Product Variant Wattage Lumens Efficacy Dimensions & Cut-Out (L x W x H) Construction & Finish illumin8 Kent Series Recessed 1-Headed Light IP20 SQ 110*110mm (15°/30°/45°) 15W (WH/BK/SL) IG-D5-1 15W 90lm/W 130 x 130 x 100mm
110 x 110mm
Die-cast aluminum illumin8 Kent Series Recessed 1-Headed Light IP20 SQ 110*110mm (15°/30°/45°) 15W (WH/BK/SL) IG-D5-1/DS 15W 90lm/W 130 x 130 x 100mm
110 x 110mm
Die-cast aluminum illumin8 Kent Series Recessed 2-Headed Light IP20 SQ 230*110mm (15°/30°/45°) 15W*2 (WH/BK/SL) IG-D5-2 15W*2 90lm/W 250 x 130 x 100mm
230 x 110mm
Die-cast aluminum illumin8 Kent Series Recessed 2-Headed Light IP20 SQ 230*110mm (15°/30°/45°) 15W*2 (WH/BK/SL) IG-D5-2/DS 15W*2 90lm/W 250 x 130 x 100mm
230 x 110mm
Die-cast aluminum illumin8 Kent Series Recessed 1-Headed Light IP20 SQ 75*75mm 50° 12W BK MB-SD04712 12W 90lm/W 84 x 84 x 84mm
75 x 75mm
Die-cast aluminum illumin8 Kent Series Recessed 1-Headed Light IP20 SQ 75*75mm 50° 12W BK MB-SD04712/DS 12W 90lm/W 84 x 84 x 84mm
75 x 75mm
Die-cast aluminum illumin8 Kent Series Recessed 2-Headed Light IP20 SQ 150*75mm 50° 12W BK MB-SD04712-2 12W*2 90lm/W 158 x 84 x 84mm
150 x 75mm
Die-cast aluminum illumin8 Kent Series Recessed 2-Headed Light IP20 SQ 150*75mm 50° 12W BK MB-SD04712-2/DS 12W*2 90lm/W 158 x 84 x 84mm
150 x 75mm
Die-cast aluminum
