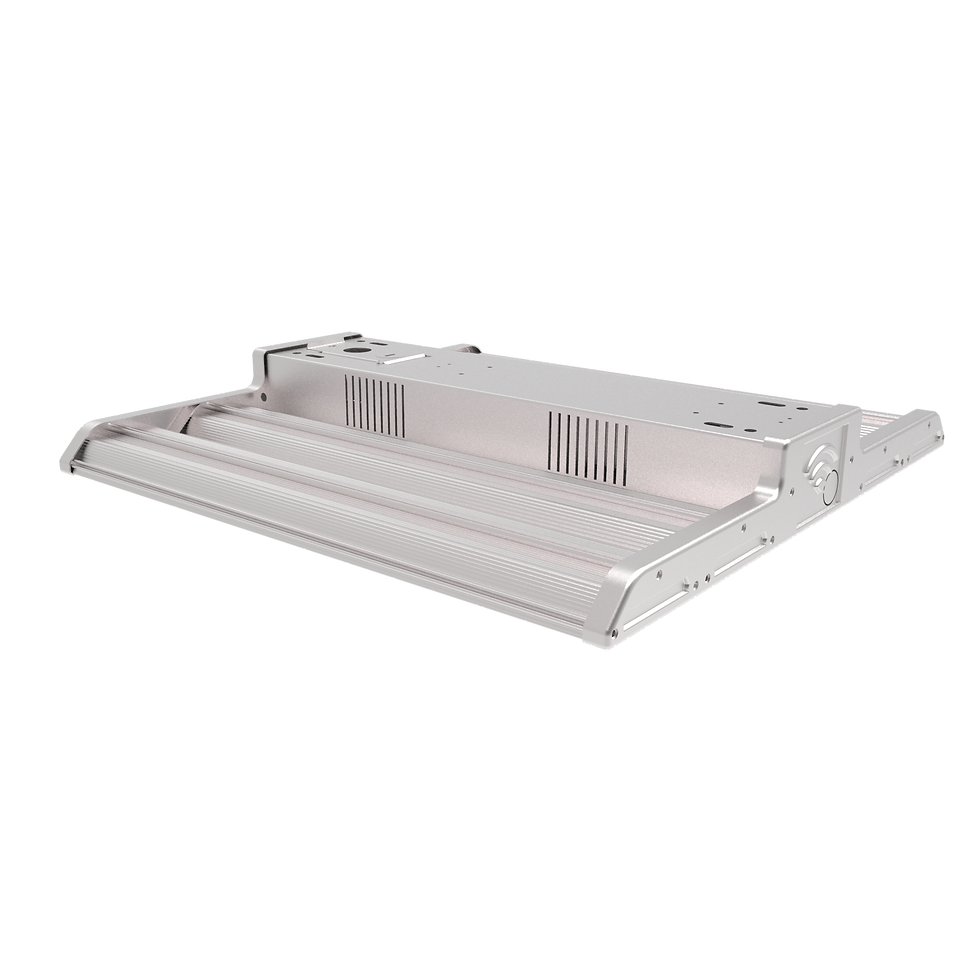

i8 Bukom Series | IP65 High Bay Lights
Bukom Series | Efficient & Versatile Recessed High Bay Lights
Engineered for high-ceiling applications in petrol kiosk/stations, warehouses, workshops, and retail spaces. Offers an optimal blend of widespread illumination, robust construction, and advanced control for energy management.
Optical Performance
Light Quality:
CRI (Color Rendering): >80
Fixed CCT Options: 3000K | 4000K | 5000K | 6500K
Lens Options: Choose between Clear (for maximum intensity) or Frosted (for reduced glare and softer light diffusion).
Electrical & Control Specifications
Driver Performance:
Power Factor (PF): >0.9
Input Voltage: Universal 100-277V AC | Dedicated 220-240V / 277-480V models available.
Frequency: 50-60 Hz
Comprehensive Dimming & Control: Supports multiple protocols for ultimate flexibility:
0-10V Analog Dimming
DALI Digital Dimming
PWM Dimming
Timing & Programmed Dimming
Sensor Integration: Ready for optional Motion (PIR), Photocell (Dawn/Dusk), or Infrared Sensors.
Durability & Environmental Ratings
Ingress Protection (IP): IP65 – Dust-tight and protected against low-pressure water jets from any direction.
Operating Limits:
Temperature Range: -20°C to +50°C
Relative Humidity: 20% - 95% (non-condensing)
Lifespan: >50,000 hours, ensuring long-term reliability.
Warranty
3 years, covering repair or replacement for manufacturing defects. Labor costs for replacement are excluded.
Technical Specifications
Core Specifications & Variants
Product Variant Wattage Lumens Efficacy Dimensions (L x W x H) Weight Construction Bukom-75 75W 150-180 lm/W 442 x 283 x 62 mm 3.0 kg High-performance extruded aluminum body for optimal heat dissipation. Bukom-100 100W 150-180 lm/W 442 x 453 x 62 mm 3.9 kg *(Construction identical to Bukom-75)* Bukom-120 120W 150-180 lm/W 442 x 453 x 62 mm 3.9 kg *(Construction identical to Bukom-75)* Bukom-150 150W 150-180 lm/W 442 x 453 x 62 mm 3.9 kg *(Construction identical to Bukom-75)*
