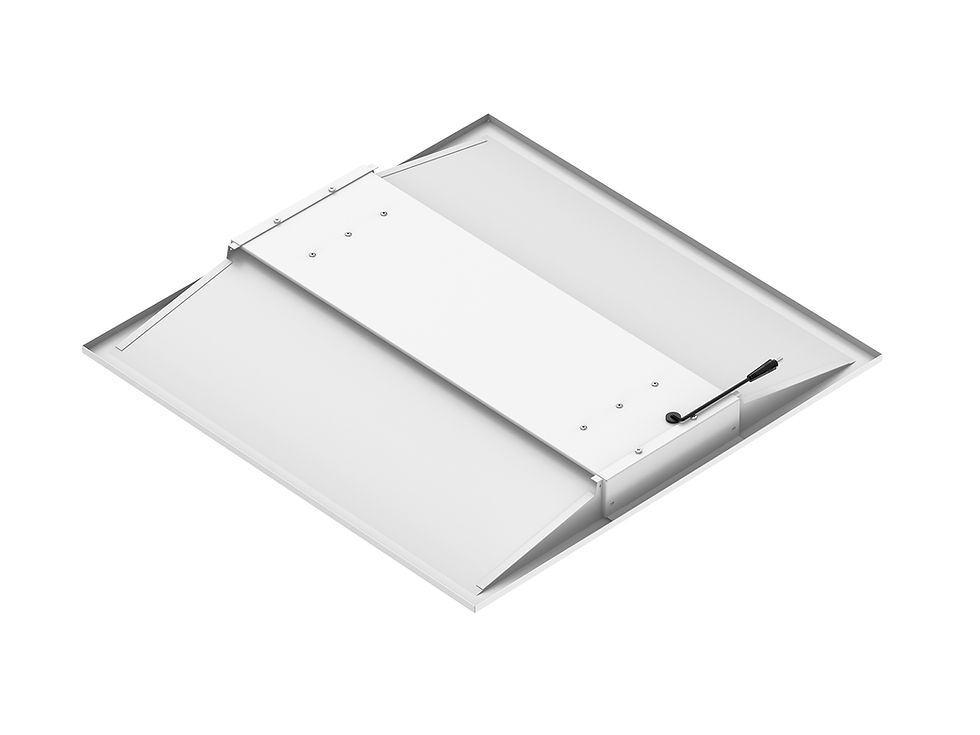

i8 Maxwell Series | Recessed Troffer LED Panel

Maxwell Series | Economical Recessed Troffer LED Panel
Engineered as a cost-effective and reliable lighting solution for standard office ceilings, classrooms, and commercial drop-grid installations. Offers essential performance with smart-ready options in a durable, recessed troffer format.

Optical & Light Quality
Light Quality:
CRI (Color Rendering): >80
Standard Fixed CCT: 3000K | 4000K | 5000K | 5700K.
Switchable CCT Option: 3-Step Fixed (3000K / 4000K / 5700K).
Optical System: Features a PMMA Lens and PS (Polystyrene) Diffuser for even, glare-free light distribution.

Electrical & Control Specifications
Driver Performance:
Power Factor (PF): >0.9
Input Voltage: AC 220-240V
Frequency: 50-60 Hz
Advanced Control & Tunability:
Dimming Protocols: Compatible with Triac, 0-10V, and DALI for broad compatibility with existing and new systems.
Full Tunable White: Optional continuous adjustment from 3000K to 5700K, controllable via DALI 2 or BLE Mesh.

Durability & Environmental Ratings
Environmental Protection:
Ingress Protection (IP): IP20 – For indoor use, protected against touch by fingers but not against water.
Impact Resistance (IK): IK06 – Protected against impact from up to a 1 Joule force (e.g., accidental knocks).
Operating Limits:
Temperature Range: -10°C to +45°C
Lifespan: >50,000 hours.

Warranty
3 years, covering repair or replacement for manufacturing defects. Labor costs for replacement are excluded.
