i8 Mayflower Series | IP65 Surface Mounted Wall Light
i8 Mayflower Series | IP65 Surface Mounted Wall Light
The Mayflower Series is an IP65-rated surface-mounted wall luminaire designed for resilient outdoor and damp environment applications. It features a durable aluminum housing with spray or powder-coated finish and is offered in two distinct variants: a Black version for soft bidirectional uplight and downlight, ideal for grazing walls and defining pathways, and a White version for focused unidirectional illumination of entries, steps, or signs. Engineered with a constant-current driver for stable performance, this robust luminaire is suitable for residential facades, commercial walkways, and landscape accents, delivering both aesthetic presence and reliable all-weather function.
Optical & Light Quality
Premium Light Quality:
CRI (Color Rendering): CRI 82 – good color rendering for accurate and natural-looking colors.
Beam Angle: 90°
Standard Fixed CCT: 3000K | 4000K | 6000K
Color: White (unidirectional) / Black (bidirectional)
Electrical & Control Specifications
Driver Performance:
Power Factor (PF): 0.9
Input Voltage: AC 220-240V, DC 24V
Frequency: 50-60 Hz
Operating Temperature: -20°C to 40°C
Durability & Environmental Ratings
Ingress Protection (IP): IP65 - Fully protected against dust ingress and low-pressure water jets from any direction.
Warranty
2 years, covering repair or replacement for manufacturing defects. Labor costs for replacement are excluded.
Technical Specifications
Core Specifications & Variants

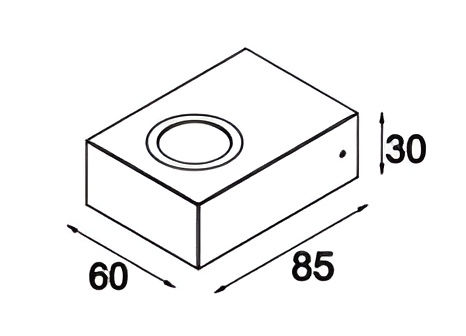

Product Variant Wattage Lumens Efficacy Dimensions & Cut-Out (L x W x H) Construction & Finish illumin8 Mayflower Series Surface Mounted Wall Light IP65 85(D)*60(W)*30(H)mm 90° 1W*2 BK MB-50109 1W*2 85lm/W 85 x 60 x 30mm
Die-cast aluminum | Black illumin8 Mayflower Series Surface Mounted Wall Light IP65 85(D)*60(W)*30(H)mm 90° 3W WH MB-50110 3W 46lm/W 85 x 60 x 30mm
Die-cast aluminum | White
