i8 Springleaf Series | IP65 Architectural Recessed Light
i8 Springleaf Series | IP65 Architectural Recessed Light

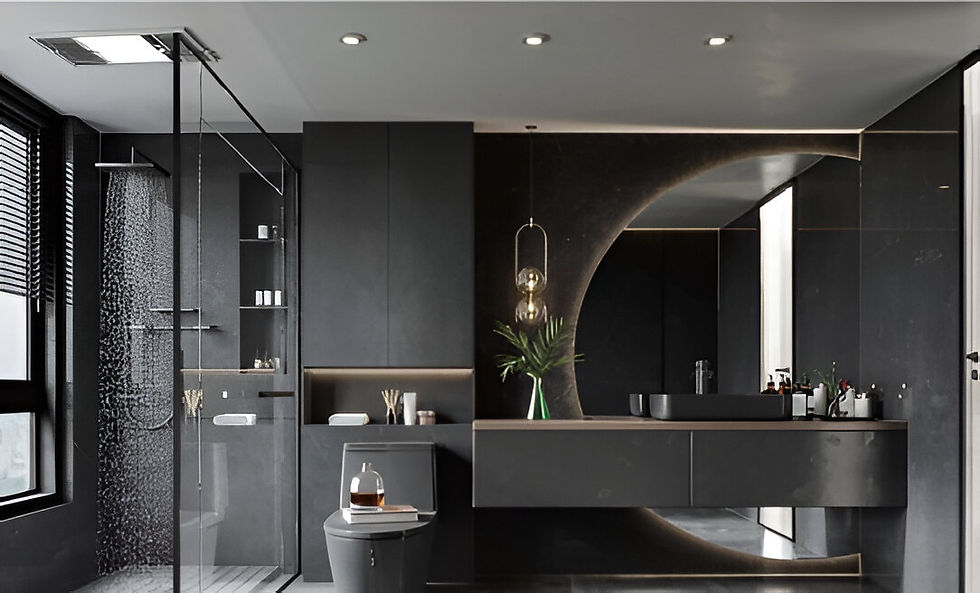

The Springleaf Series is an IP65-rated architectural luminaire, engineered to serve seamlessly as either a precise spotlight or a broad downlight. At its heart, a high-performance COB LED chip ensures brilliant, consistent illumination with exceptional color rendering, bringing true clarity to bathrooms, spa areas, and covered outdoor zones. Offered in two aperture sizes (75mm and 95mm), its resilient, fully-recessed design features a die-cast aluminum frame and an anti-yellowing PC grille for enduring performance. Available with dimmable and tunable white (3000K-5000K) options, it enables dynamic scene-setting and mood adjustment for a truly premium, personalized lighting experience. Designed for specification ease with tool-free installation, it is the definitive choice for architects and designers who refuse to compromise between aesthetic minimalism and technical assurance in wet and humid environments.
Optical & Light Quality
Premium Light Quality:
CRI (Color Rendering): >90 – Excellent color fidelity for accurate visual representation.
Standard Fixed CCT: 3000K | 4000K | 5000K.
Beam Angle: 15° | 24° | 36° | 60°
UGR (Unified Glare Rating): <19
Full Tunable White: Optional continuous adjustment from 3000K to 5000K, controllable via DALI or BLE Mesh for dynamic lighting scenes.
Reflector Color: White | Black | Gold | Gunmetal | Silver
Electrical & Control Specifications
Driver Performance:
Power Factor (PF): >0.9
Input Voltage: AC 220-240V
Frequency: 50-60 Hz
Dimming & Control: Compatible with 0-10V and DALI protocols for smooth dimming and integration into building management systems.
Durability & Environmental Ratings
Ingress Protection (IP): IP65 – Protected against dust ingress and against water jets from a nozzle (6.3mm) from any direction. Suitable for humid indoor spaces, uncovered outdoor areas exposed to weather, and locations where washdown or directed spray may occur.
Warranty
2 years, covering repair or replacement for manufacturing defects. Labor costs for replacement are excluded.
Technical Specifications
Core Specifications & Variants
Product Variant Wattage Lumens Efficacy Dimensions & Cut-out (L x W x H) Construction & Finish illumin8 Springleaf Series Recessed Light IP65 75mm (15°/24°/36°/60°) 7W (WH/BK/GD/GM/SV) IG-FX1-75/DS 7W 90lm/W 90 x 90 x 55mm
75mm
Die-cast aluminum frame illumin8 Springleaf Series Recessed Light IP65 75mm (15°/24°/36°/60°) 7W (WH/BK/GD/GM/SV) IG-FX1-75 7W 90lm/W 90 x 90 x 55mm
75mm
Die-cast aluminum frame illumin8 Springleaf Series Recessed Light IP65 95mm (15°/24°/36°/60°) 15W (WH/BK/GD/GM/SV) IG-FX1-95/DS 15W 90lm/W 105 x 105 x 65mm
95mm
Die-cast aluminum frame illumin8 Springleaf Series Recessed Light IP65 95mm (15°/24°/36°/60°) 15W (WH/BK/GD/GM/SV) IG-FX1-95 15W 90lm/W 105 x 105 x 65mm
95mm
Die-cast aluminum frame
